Interface Control Overview

Modem Interfaces​

This document applies to the following Popoto Modem products:

  • PMM4511-00: PMM4511 OEM Modem, Standard Voltage Input Range
  • PMM4511WV-00: PMM4511 OEM Modem, Wide Voltage Input Range

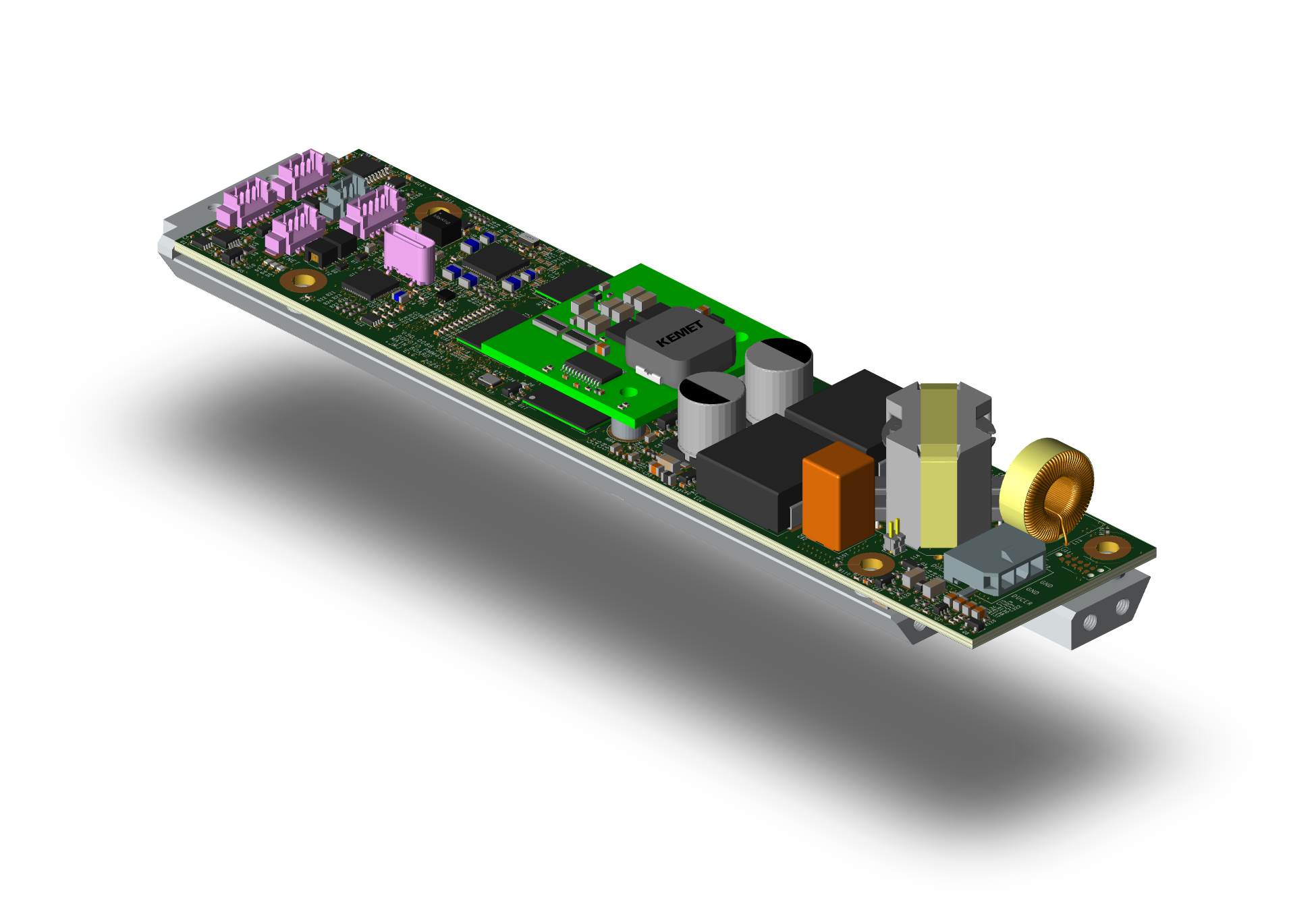

PMM4511WV-00 OEM Acoustic Modem board
PMM4511WV-00 OEM Modem.

Top Connector Locations​

PMM4511 top connector locations
Top connector locations.

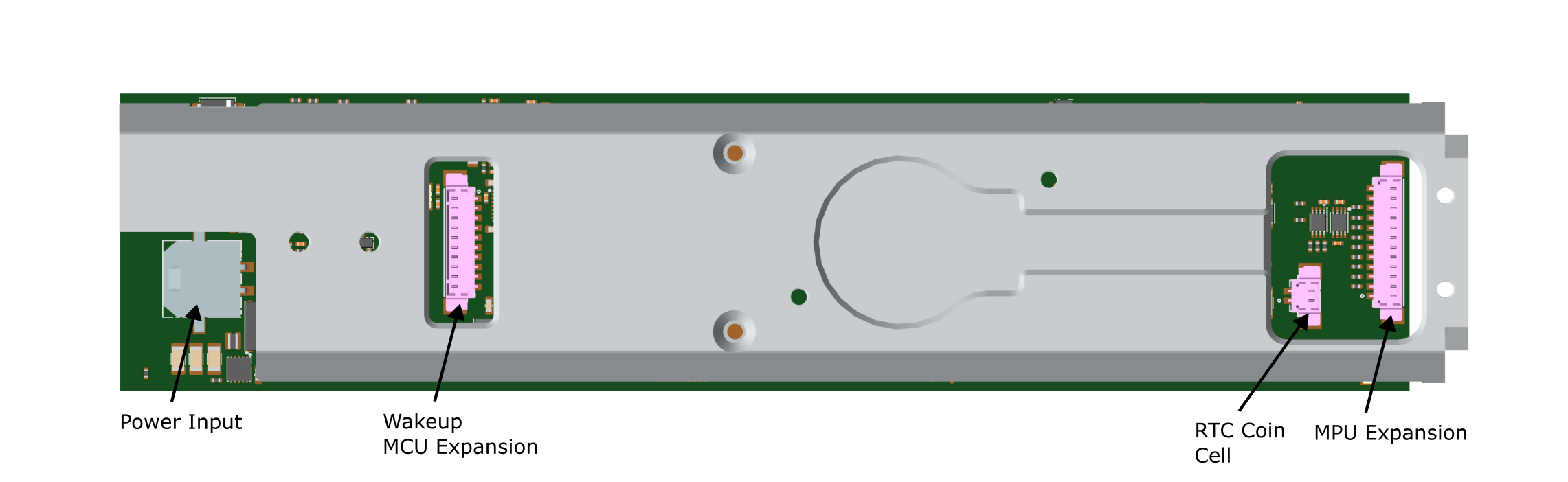

Bottom Connector Locations​

PMM4511 bottom connector locations
Bottom connector locations.
